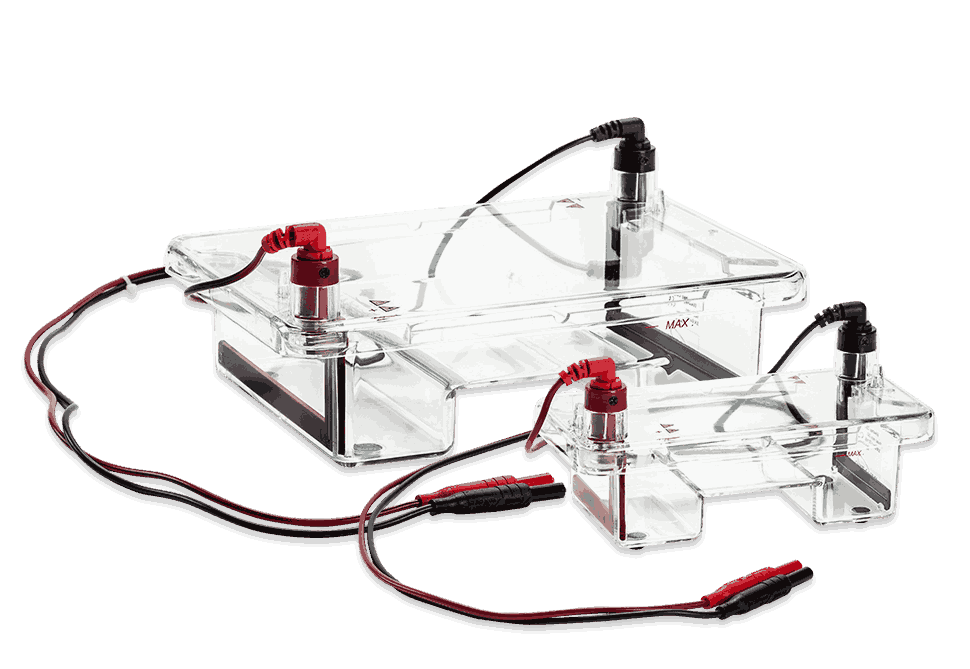

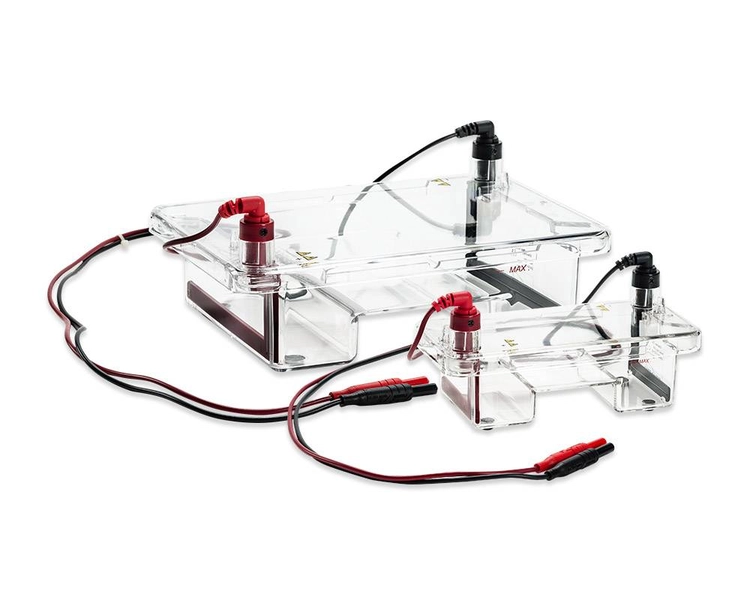

GES and Mini GES
GES와 Mini GES는 젤 탱크, 젤 트레이, 상단 뚜껑, 캐스팅 모듈, 빨강/검정 L형 전극으로 구성되어 있습니다.
이 장치는 사출 성형 기술로 제작되었으며, Dams-claw* 설계를 통해 젤 캐스팅 시 누수를 방지합니다.
다양한 크기의 트레이와 콤을 사용하여 서로 다른 용량의 핵산 샘플을 적재할 수 있습니다.
빠르게 조립 가능한 L형 전극은 플래티넘 와이어를 사용하여 손쉽게 청소 및 교체할 수 있습니다.
특징
- 젤 캐스팅 시스템을 위한 독창적인 누수 방지 설계
- 샘플 트레이에 인쇄된 형광 눈금
- UV 투과성 샘플 트레이
응용 분야
- 교육, 대학, 학술, 연구소
- 분석 화학 및 분자 실험실
- 식품 산업 및 검사 실험실
- 신약 개발 및 생명공학 기업
- 단백질체학 및 유전체학 핵심 시설
- 효소 반응 및 면역학

Specifications
| Model | GES | Mini GES |
| Fluorescent ruler | Yes | Yes |
| Tray size | 100 x 150 mm / 70 x 150 mm / 150 x 150 mm | 100 x 70 mm / 65 x 70 mm |
| Number of teeth | 15, 20 | 15, 10 |
| Thickness of comb | 0.75/1.0/1.5 mm | |
| Electrode | Gold-plated electrode with platinum wire | |
| Cable | Safety black and red cable | |
| Leakage free gel casting | Dams-claw* | |
| Sample throughput | Max. 40 mL | Max. 30 mL |
| Buffer volume | 650-1000 mL | 200-270 mL |
| HzDimensions (W x D x H) | 270 x 175 x 100 mm | 200 x 95 x 85 mm |
| Weight | 2 kg | 1 kg |
| Certification | CE | |
| Recommended power supply | ELITE U series | |
| *The spec is subject to change without prior notice. | ||
| ** ELITE HC2.5/3.0 and ELITE 300U/600U power supply comply with EN 61010-1 | ||
| GES & mini-GES unit | |
| 1011000 | mini-GES Cell complete system, mini GES-cell accompanies with a 10 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb. |
| 1011001 | mini-GES Cell complete system, mini GES-cell accompanies with a 6.5 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb |
| 1011002 | GES Cell complete system, GES-cell accompanies with a 10 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed- height comb |
| 1011003 | GES Cell complete system, GES-cell accompanies with a 7 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed-height comb. |
| 1011004 | GES Cell complete system, GES-cell accompanies with a 15 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed-height comb |
